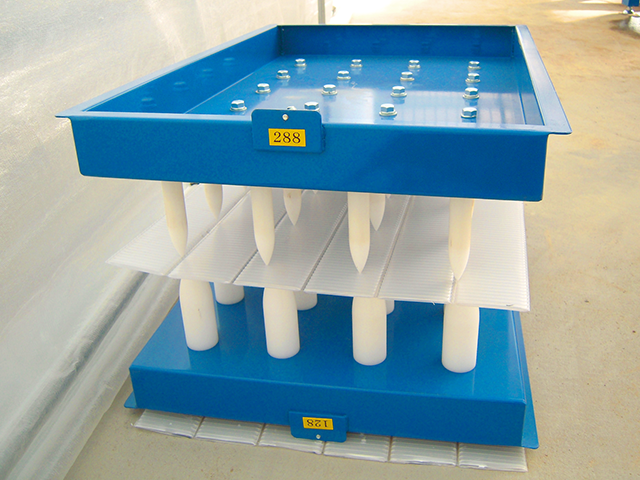

suppression panel
We manufacture panels to suit the sizes of various plug trays. You can also specify the shape of the dibble that compresses the soil.

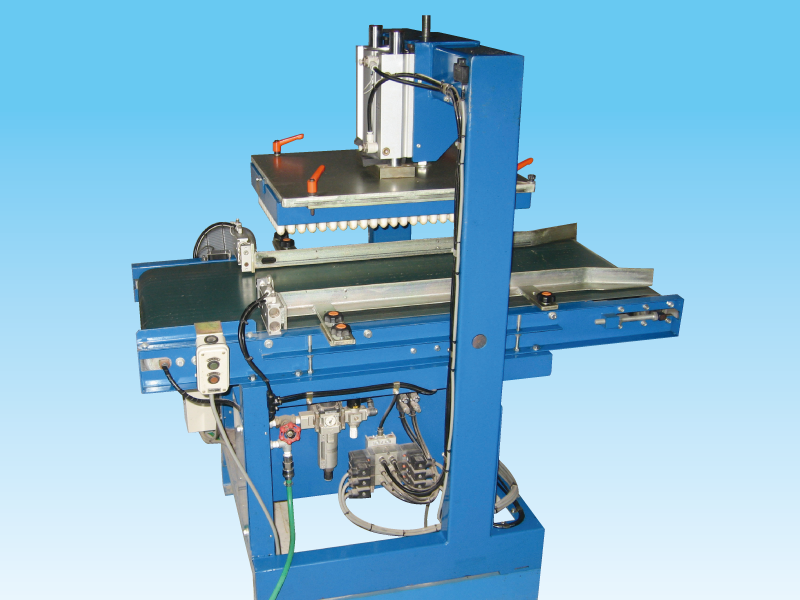

Auto dibbler
Automatic suppression device
A compaction device is a device that creates a depression in which to sow seeds after filling a plug tray with soil. By creating a depression, seeds are sown in the center of the cell, which stabilizes the growth of seedlings.
The same pressure device can also be used to make holes in pots for transplanting plug seedlings.
Recently, it has been used for transplanting bare tree seedlings.
The same pressure device can also be used to make holes in pots for transplanting plug seedlings.
Recently, it has been used for transplanting bare tree seedlings.
KYC-DE
| Model name | KYC-DE型 |
|---|---|
| ability | 350 trays/hour |
| length | 1,150㎜ |
| width | 670㎜ |
| height | 1,456㎜ |
| belt width | 440㎜ |
| power supply | Three phase 200V 0.09KW |
※A separate compressor is required.
Pot hole drilling video(Japanese)
Plug tray suppression video(Japanese)

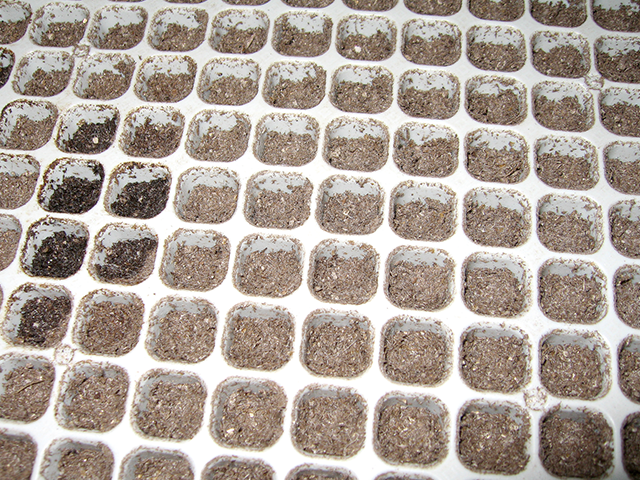

suppressed plug tray
We manufacture panels to suit the sizes of various plug trays. You can also specify the shape of the dibble that compresses the soil.

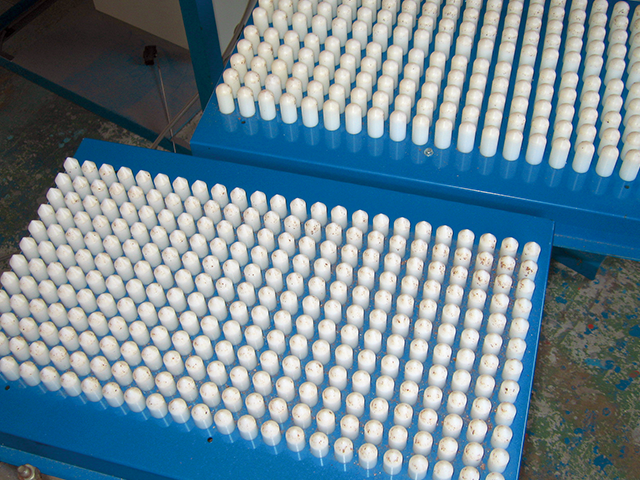

perforated panel
Hole dibbles are manufactured according to the size of the tray and the size of the plug seedlings. You can also specify the shape of the dibble.

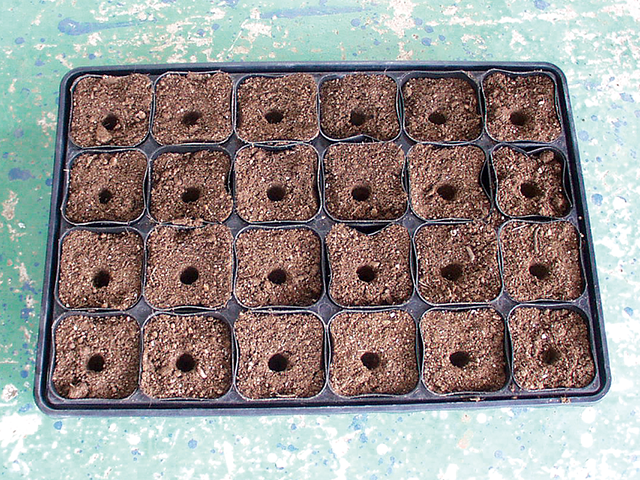

potted soil with holes drilled in it
You can also adjust the depth of the hole.
