Drum type seeder/KYOWA GREEN

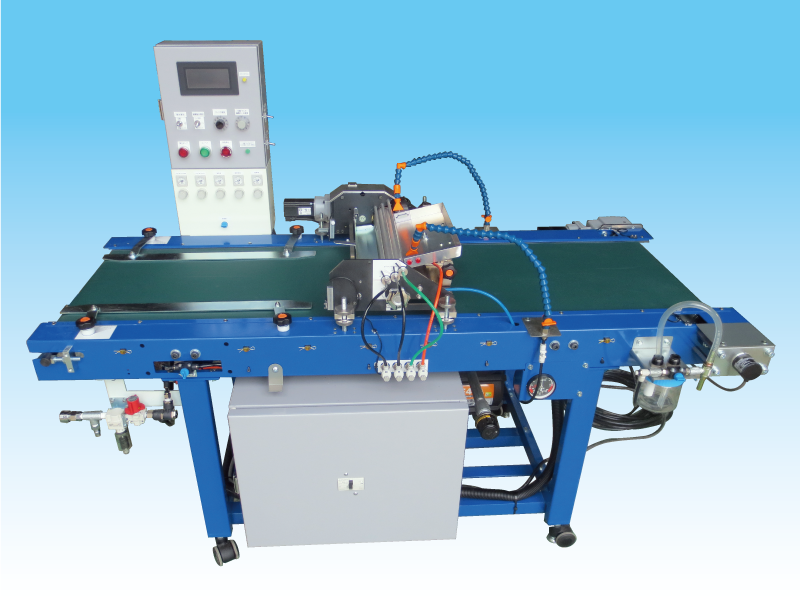

Drum type seeder
VS-2

Video of sowing multiple seeds(Japanese)

Video of sowing one seed(Japanese)

Melon seeding test video
Speed: Approximately 250 sheets/hour (288 trays used)
Seeding accuracy: about 99%

Watermelon sowing demonstration video
Speed: Approximately 120 sheets/hour (288 trays used)
Seeding accuracy: about 98%

standard equipment

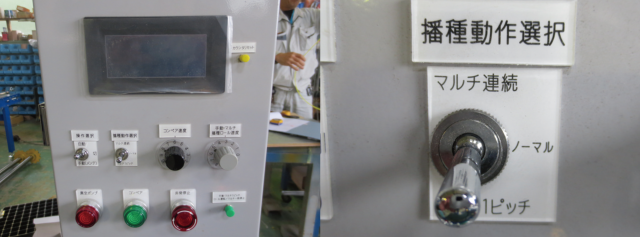

Multi specifications are standard equipment
Multi specification refers to the multiple grain sowing function, which allows multiple grains to be sown into the cell holes while the belt conveyor is temporarily stopped.

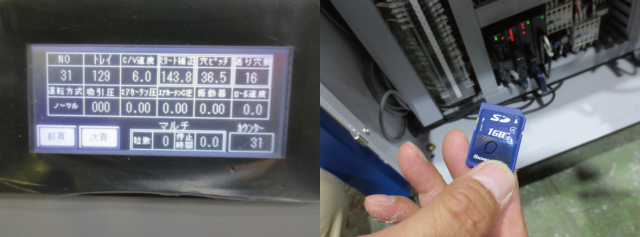

Touch panel screen and memory function
The pre-programmed pattern is displayed and adjustments can be made simply by inputting it. The main unit can store up to 120 patterns. You can also import patterns to an SD card, allowing you to store even more patterns.

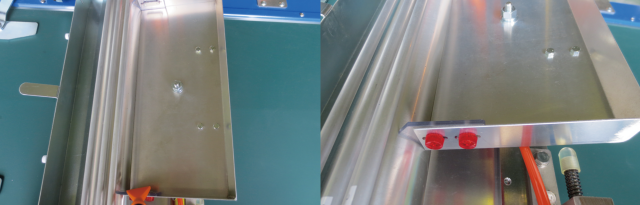

Standard seed tray for large seeds (vibration type)

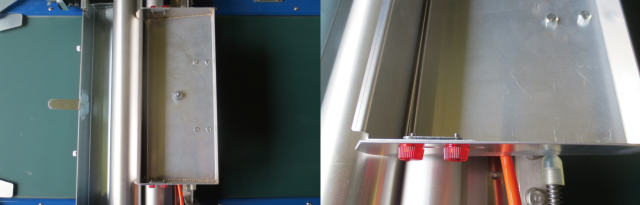

Seed tray for fine seeds (stirring roll type)

structure

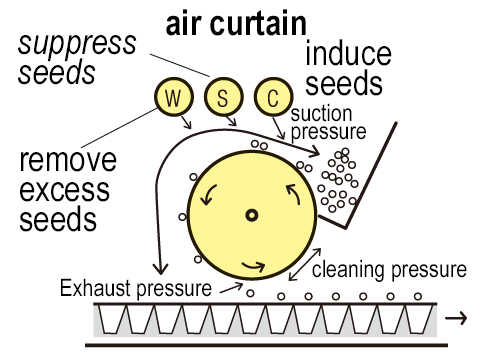

Air curtain with three functions increases seeding accuracy.

structure

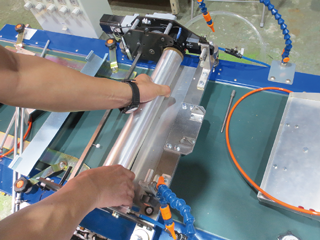

Seeding roll (drum)

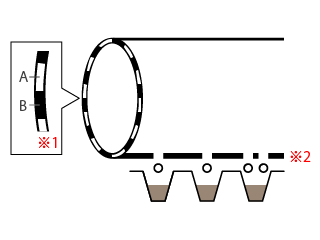

One bottle can handle two types.（※1）
We can also process two holes in one location.（※2）

example（※1）

same tray	A	288 tray	Hole diameter φ0.3
different hole diameters	B	288 tray	Hole diameter φ1.0

different trays	A	288 tray	Hole diameter φ1.0
same hole diameter	B	200 tray	Hole diameter φ1.0

specification

Model name	VS-2
drive	conveyor drive
Seed adsorption part	drum (roll)
Compatible seeds	Flower/vegetable seeds (not begonia)/coated seeds
processing power	Variable speed 0~900 tray/hour
Compatible tray	Various plug trays
	Seedling box for paddy rice (stripe sowing)
	Also available for special trays such as vegetable factories (some are not available)
power supply	Three phase 200V 1.3kw
standard equipment	Standard seed tray for large seeds, seed tray for fine seeds
standard equipment	Multiple seed sowing function

※A separate compressor is required.
